Every espresso shot's consistency hangs in the balance of microscopic details. As baristas struggle with uneven extractions, the true culprit often lies hidden in imprecise filter basket manufacturing tolerances that undermine their techniques.
Manufacturing processes significantly impact filter basket precision through hole diameter consistency, pattern uniformity, and surface finishing. Industry-standard tolerances for premium baskets typically maintain hole diameter variations within ±20μm, pattern centering within ±1.0mm, and require 100% optical verification of hole circularity and placement.
After years manufacturing precision coffee baskets, I've discovered how these seemingly minor manufacturing details dramatically influence your daily coffee experience. Let me take you behind the scenes to understand what truly separates premium filter baskets from standard alternatives.
How Does Laser Cutting Technology Transform Filter Basket Performance?
Conventional basket manufacturing leaves baristas battling inconsistent extractions. The micro-perforations enabled by laser cutting technology create a foundation for extraction consistency that's impossible with traditional methods.

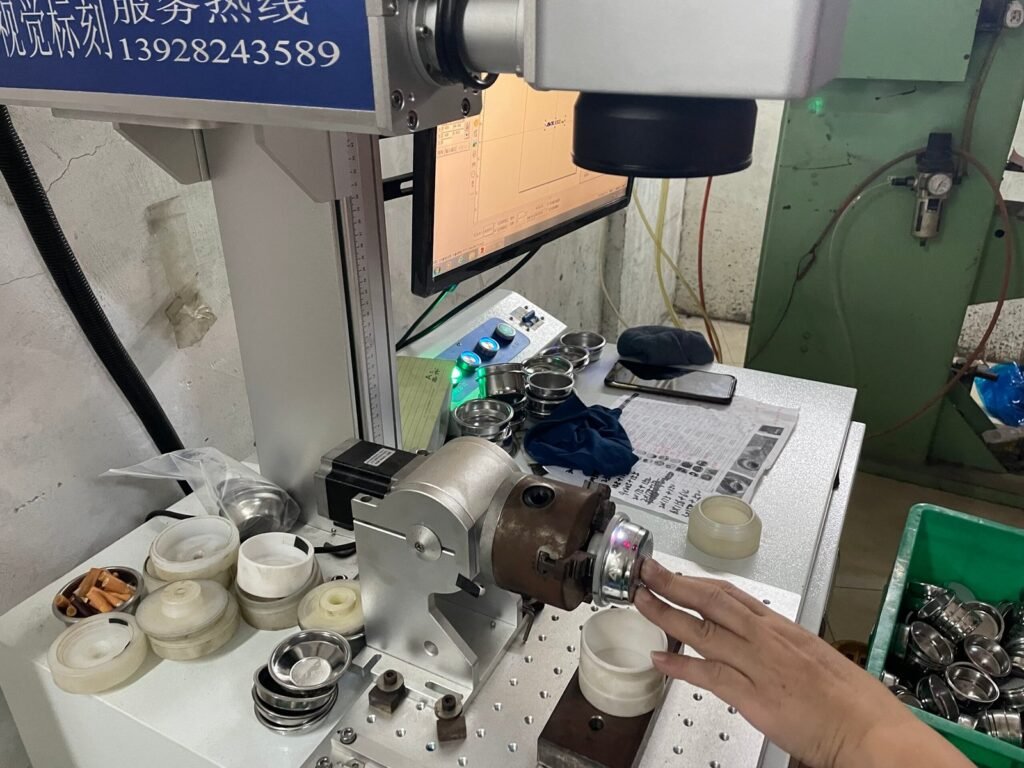

Laser cutting creates precision filter basket holes using focused laser beams, enabling micro-perforations as small as 0.30mm with incremental spacing adjustments. This non-contact process minimizes hole-to-hole variability, reducing channeling risks while allowing customizable flow profiles for specific extraction requirements.
When examining laser-cut baskets under magnification, the superiority becomes immediately apparent. At SIF Coffee Tools, our laser cutting systems operate with sub-millimeter precision, creating holes that maintain consistent diameter throughout the entire basket pattern. This matters because even minor variations in hole size create preferential pathways for water, leading to channeling and uneven extraction.
The process begins with medical-grade stainless steel sheets that undergo rigorous material testing before fabrication. Unlike traditional punching methods that can create microscopic burrs or irregular edges, laser cutting vaporizes the material, resulting in clean, precise perforations.
We've observed through testing that the micro-perforation pattern made possible by laser technology directly influences extraction dynamics:
| Hole Pattern Characteristic | Impact on Extraction | Laser Cutting Advantage |
|---|---|---|
| Diameter consistency (±20μm) | Even water distribution | No mechanical wear affecting precision |
| Pattern density customization | Tailored flow resistance | Can adjust hole placement in 1.5mm increments |
| Hole profile quality | Reduced micro-channeling | No burrs or material deformation |
| Surface finish | Minimal particle clogging | Heat-affected zone creates smooth edges |
Our most advanced baskets feature graduated hole patterns where spacing adjusts incrementally toward the basket edge, compensating for natural pressure distribution during extraction. This level of customization would be prohibitively expensive or technically impossible with traditional manufacturing methods.
Why Do Punching Technologies With Optical Analysis Matter for Commercial Coffee Quality?
Coffee businesses lose thousands in inconsistent product quality when using imprecise baskets. Modern punching with integrated optical analysis eliminates this variable, delivering quantifiable improvements in extraction consistency.
Punching with optical analysis employs precision mechanical dies followed by 100% automated inspection to verify hole size, spacing, and alignment. This manufacturing approach ensures batch uniformity by rejecting non-compliant baskets with tolerance deviations as small as 0.01%, enabling higher hole density for optimized extraction.
The punching process, when combined with advanced optical analysis, represents a significant evolution in basket manufacturing reliability. At SIF Coffee Tools, we've invested heavily in this technology because the data shows it eliminates the primary weakness of traditional punching: inconsistency between production batches.
The process works through a synchronized system of precision dies that punch each hole individually, followed immediately by high-resolution cameras that inspect every single perforation. Our quality control systems employ machine learning algorithms that can detect deviations invisible to the human eye, including:
- Microscopic variations in hole diameter beyond the ±20μm tolerance
- Pattern centering deviations greater than ±1.0mm
- Imperfect hole circularity that might create turbulence in water flow
- Surface irregularities that could interfere with extraction
The advancement in punching technology has enabled us to create baskets with significantly higher hole density - up to 585+ holes in our premium models - while maintaining strict quality standards. This increased density provides several benefits:
| Feature | Commercial Benefit | Technical Advantage |
|---|---|---|
| Higher hole count | Faster shot preparation times | Reduced flow restriction while maintaining filtration |
| Verified hole placement | Consistent product experience | Elimination of random extraction variables |
| Batch uniformity | Simplified barista training | Predictable extraction parameters across all machines |
| Anti-clogging design | Reduced maintenance requirements | Optimized hole profile prevents coffee particles from lodging |
This manufacturing approach proves particularly valuable for commercial environments where consistency across hundreds of daily extractions directly impacts profitability. One Middle Eastern distributor reported a 15% reduction in coffee waste after standardizing on optically verified baskets throughout their cafe chain.
What Tolerances Separate Professional-Grade Baskets from Standard Alternatives?
Coffee equipment distributors face constant pressure to justify premium pricing on seemingly identical products. Understanding the precision tolerances behind quality filter baskets provides the technical foundation for value differentiation.
Professional-grade filter baskets adhere to strict manufacturing tolerances including ±20μm hole diameter precision, ±1.0mm pattern centering, verified hole circularity, and specialized surface finishing to prevent clogging. These tolerances, maintained through rigorous quality control, directly influence extraction consistency and flavor clarity.
The difference between standard and professional-grade filter baskets often remains invisible until you examine the microscopic tolerances that define their performance. After manufacturing hundreds of thousands of baskets, I've identified specific tolerance thresholds that consistently separate exceptional performers from adequate ones.
The most critical measurements focus on hole precision and pattern uniformity:
Critical Tolerance Specifications
| Tolerance Parameter | Industry Standard | SIF Premium Specification | Impact on Extraction |
|---|---|---|---|
| Hole diameter variation | ±50μm | ±20μm | Controls flow rate consistency across the entire basket surface |
| Pattern centering | ±2.0mm | ±1.0mm | Ensures even extraction regardless of distribution technique |
| Material thickness | ±0.1mm | ±0.05mm | Affects basket rigidity and thermal stability during extraction |
| Surface roughness | Ra 1.0 | Ra 0.8 | Reduces coffee particle adhesion and simplifies cleaning |
| Rim diameter precision | ±0.2mm | ±0.1mm | Guarantees proper sealing within portafilter to prevent leakage |
These tolerances require specialized measurement equipment including digital micrometers, optical comparators, and surface profilometers. Every production batch undergoes sampling verification where key dimensions are checked against master reference standards.
The impact of these tolerances becomes most apparent during extraction testing. When using pressure profiling equipment, baskets meeting premium specifications demonstrate remarkably consistent flow characteristics, with pressure curves varying less than 2% between samples. Standard baskets typically show 8-12% variation under identical conditions.
For coffee business owners, this precision translates directly to operational benefits. Baristas spend less time adjusting grind settings between shots, extraction yields remain more consistent, and the sensory profile of espresso becomes more predictable - critical factors for maintaining customer satisfaction and controlling inventory costs.
How Does Material Selection Complement Manufacturing Precision in Premium Baskets?
Even perfect hole patterns fail when paired with inferior materials. The combination of material quality and manufacturing precision creates the foundation for exceptional filter basket performance and longevity.

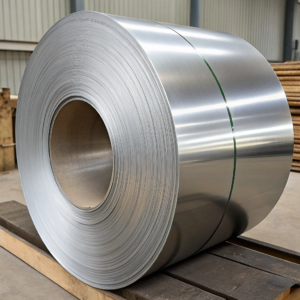

Material selection critically complements manufacturing precision through corrosion resistance, dimensional stability, and food safety compliance. Premium baskets utilize medical-grade 316L stainless steel with strict composition controls, ensuring consistent performance under high-pressure, high-temperature extraction conditions while maintaining FDA and LFGB certification requirements.
The relationship between material quality and manufacturing precision represents one of the most overlooked aspects of filter basket performance. At SIF Coffee Tools, our metallurgical testing has demonstrated that material composition directly influences how precisely we can manufacture and maintain hole tolerances.
The foundation begins with material selection. While most baskets use stainless steel, significant differences exist between grades and sourcing:
Material Considerations for Precision Manufacturing
| Material Characteristic | Significance | Implementation at SIF |
|---|---|---|
| Chromium content (16-18%) | Determines corrosion resistance | Verified through X-ray fluorescence testing of each material batch |
| Carbon percentage (<0.03%) | Affects machining precision and edge quality | Controlled through strict supplier specifications |
| Surface hardness (95-100 HRB) | Influences durability and resistance to deformation | Tested using calibrated Rockwell hardness testers |
| Grain structure uniformity | Impacts consistency during laser cutting or punching | Microscopic inspection of sample batches |
| Thermal expansion coefficient | Critical for maintaining tolerances during manufacturing | Temperature-controlled manufacturing environment |
We've found that medical-grade 316L stainless steel provides the optimal balance of machinability, durability, and food safety. This material maintains dimensional stability through repeated thermal cycles of brewing and cleaning, preserving the precision of the hole pattern throughout the basket's service life.
The material's composition also directly affects manufacturing capabilities. Lower-quality stainless with inconsistent alloying elements can cause unpredictable results during laser cutting, with potential variations in hole diameter of up to 50μm. By controlling material sourcing, we maintain our ±20μm tolerance standard consistently.
For commercial clients, this material quality translates to tangible benefits: extended product lifespan, resistance to cleaning chemicals without corrosion, and compliance with international food safety standards including FDA, LFGB, and REACH certifications - critical requirements for exporters serving premium markets in Europe and North America.
Conclusion
Precision filter basket manufacturing combines advanced technology, strict tolerances, and quality materials. By understanding these elements, you'll make more informed purchasing decisions and elevate your coffee program's consistency and quality.
